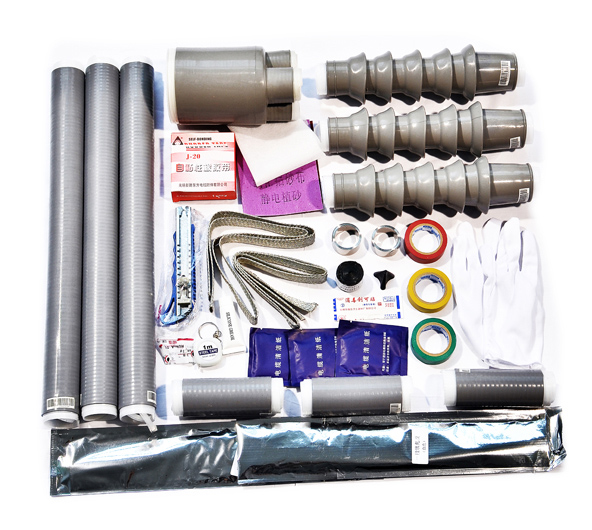

8.7/15kV冷缩电缆附件可分为冷缩电缆终端头和冷缩电缆中间接头，按电缆芯数可分为单芯、三芯。 产品广泛应用于8.7kV—15kV电压等级的电缆的终端处理和中间连接。 先进的生产工艺，真空高压注塑硫化成型。内部结构合理，密封性好，安全可靠。 |
| 型号 | 名称 | 适用电缆规格 | 型号 | 名称 | 适用电缆规格 |
| 10KVLSN-3/1 | 10KV三芯户内终端 | 25-50mm2 | 10KVLSW-3/1 | 10KV三芯户外终端 | 25-50mm2 |
| 10KVLSN-3/2 | 70-120mm2 | 10KVLSW-3/2 | 70-120mm2 | ||
| 10KVLSN-3/3 | 150-240mm2 | 10KVLSW-3/3 | 150-240mm2 | ||
| 10KVLSN-3/4 | 300-400mm2 | 10KVLSW-3/4 | 300-400mm2 | ||
| 10KVLSN-3/5 | 500-800mm2 | 10KVLSW-3/5 | 500-800mm2 | ||
| 10KVLSN-1/1 | 10KV单芯户内终端 | 25-50mm2 | 10KVLSW-1/1 | 10KV单芯户外终端 | 25-50mm2 |
| 10KVLSN-1/2 | 70-120mm2 | 10KVLSW-1/2 | 70-120mm2 | ||
| 10KVLSN-1/3 | 150-240mm2 | 10KVLSW-1/3 | 150-240mm2 | ||
| 10KVLSN-1/4 | 300-400mm2 | 10KVLSW-1/4 | 300-400mm2 | ||
| 10KVLSN-1/5 | 500-800mm2 | 10KVLSW-1/5 | 500-800mm2 | ||
| 10KVLSJ-1/1 | 10KV单芯中间接头 | 25-50mm2 | 10KVLSJ-3/1 | 10KV三芯中间接头 | 25-50mm2 |
| 10KVLSJ-1/2 | 70-120mm2 | 10KVLSJ-3/2 | 70-120mm2 | ||
| 10KVLSJ-1/3 | 150-240mm2 | 10KVLSJ-3/3 | 150-240mm2 | ||
| 10KVLSJ-1/4 | 300-400mm2 | 10KVLSJ-3/4 | 300-400mm2 | ||
| 10KVLSJ-1/5 | 500-800mm2 | 10KVLSJ-3/5 | 500-800mm2 |
